Description:

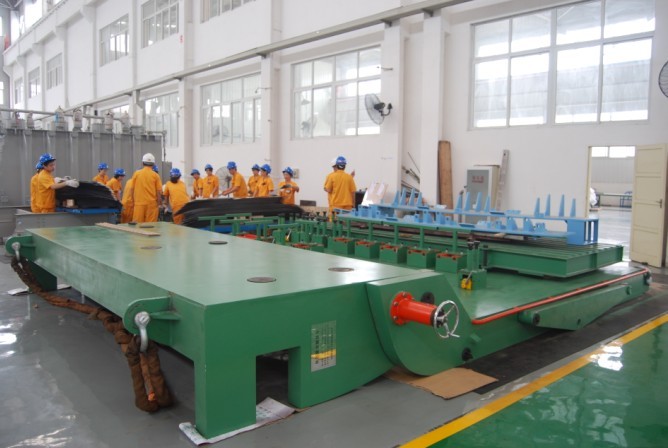

Core stacking table is for huge transformer cores assembling & mounting.
It is equipped with adjustable profile modeling. Operator can position cores according to the profile modeling, thus increase laminating precision and speed.
Longitudinal movement is via linear guide; Rotation is driven by hydraulic.
For bigger capacity, the structure will be different,
Specifications:
|
Item Model |
TXD-2 |
TXD-3 |
TXD-5 |
TXD-10 |
|
|
Max. core weight (T) |
2 |
3 |
5 |
10 |
|
|
Max. core height (mm) |
1000 |
1600 |
1800 |
3000 |
|
|
Max. core width (mm) |
1200 |
1800 |
2000 |
3200 |
|
|
Laminating precision (mm) |
0.1-0.2 |
||||
|
Working height (mm) |
1000 |
||||
|
Overturning degree (°) |
0~90 |
||||
|
Overturning duration (s) |
80 |
||||
|
Hydraulic system pressure (MPa) |
30 |
||||
|
Hydraulic working pressure (MPa) |
15 |
||||
|
Pump motor power (kW) |
2.2 |
2.2 |
3 |
4 |
|
