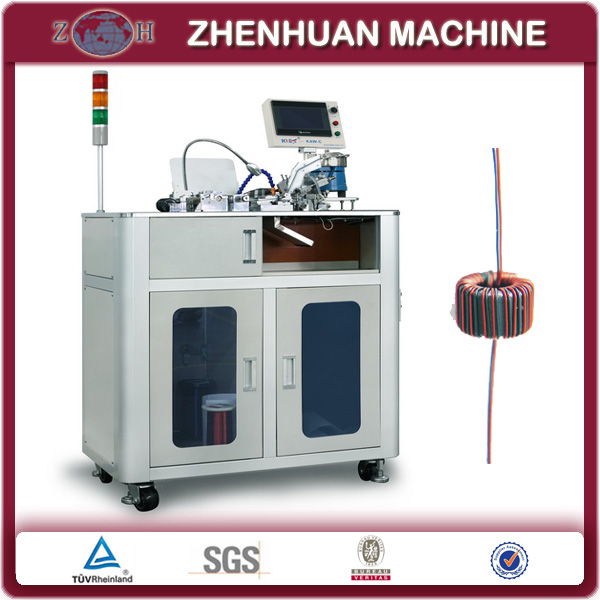

This machine is for winding 4-wire twisted to super miniature toroidal cores.
This is a full automatic machine, auto core feeding, wire accumulating, twisting, winding, finished coil unloading.
There are also other miniature toroidal coil winders for different wire winding:
II Main features of CNC miniature toroidal coil winding machine:
- Separate accumulating speed & length control
- Separate winding speed & turns control
- Optical fibre sensor plus dual digital displayer for turns controlling
- Variable winding pitch, programmable
- Servo motor drive, high precision, stable speed switching
- Full automatic, continuous working, many machines with few operators
III Main technical data of CNC miniature toroidal coil winding machine:
|
Item |
Data |
|
Miniature core ID |
1.27~2mm |
|
Miniature core OD |
2~4mm |
|
Miniature core height |
0.65~3mm |
|
Suitable wire diameter |
0.07 ~0.127mm |
|
Winding method |
4 wires twisted |
|
Winding turns |
9~16 |
|
Continuous production delay time |
Less than 2% |
|
Winding speed |
4~6s per piece |
|
Percent of pass |
>99.5% |
|
Machine dimension |
About 850 x 550 x 1400mm |
|
Machine weight |
About 450kg |
