Close core winding machine
I Description:

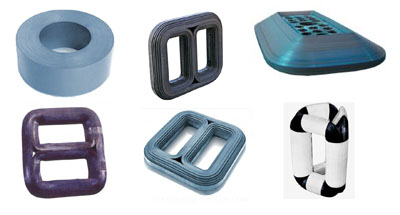

This machine is designed for winding CRGO cores in round section, trapezoidal section, round + trapezoidal combined section, and of course the conventional rectangle section as well.
This machine is comprised of decoiling device, positioning & tensioning device, winding device and control system. It is equipped with electronic counting device for counting turns.
II Specifications
-- Suitable core shape: plane & tridimensional
-- Suitable core sections: round, trapezoidal, round + trapezoidal, rectangle
-- Max. core column diameter: plane 230mm; tridimensional 300mm
-- Max. workpiece weight: 1.5T
-- Suitable transformer capacity range:
1) Plane: 30~800kVA
2) 3D: 30~1600kVA
-- Position device:
1) Automatic positioning, min. strip width 8mm, max. strip width 340mm
2) Two pneumatic clamping & damping stations and two positioning stations
3) Damping force can be adjusted with pneumatic pressure meter displaying
-- Max. turning radius: 650mm
-- Max. winding speed: 55rpm (average speed 0~30rpm)
-- Speed adjusting method: Mitsubishi inverter control
-- Main driving motor power: 5kW
-- Max. torque of the main winding spindle: about 1300N·m
-- Dimension: about 6m x 1.5m x 1.4m
-- Weight: about 2000kg
