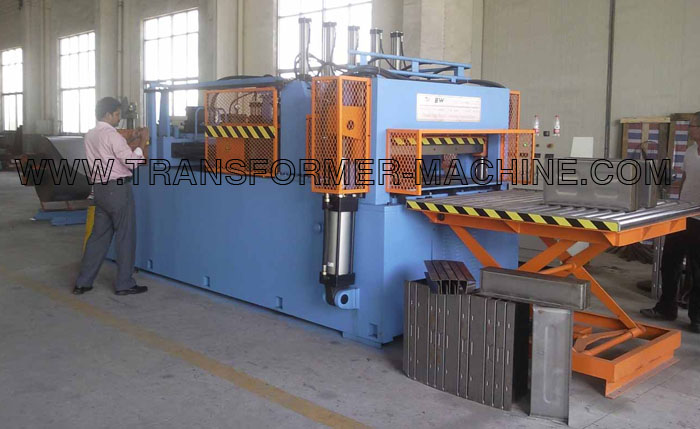

Corrugated tank fin wall forming machine
Description:
This machine is special for forming corrugated tank fin walls automatically. It can form 4 units one time (four walls of one tank). The units and fin numbers can be preset in PLC.
Ribs can be added according to requirement.
|corrugated tank machine|corrugated tank machine|corrugated tank machine|corrugated tank machine|corrugated tank machine|

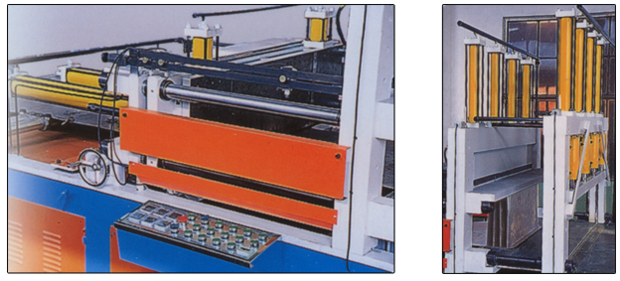

Buildup:
- Decoiler: mechanical expansion, passive, capacity 6T.
- Hydraulic station for folding: max. pressure 30MPa, max. flux 100L/min, pump motor 7.5kW; main hydraulic components are from Taiwan.
- Main forming unit: hydraulic driven, automatic forming
- Shearing device: hydraulic driven to cut formed fins, automatic
- Run-out table: manual, 3m long
- PLC control system: PLC, inverter, touch screen, encoder, are Mitsubishi from Japan; electric components are Schneider brand, from joint venture in China.
|transformer corrugated tank machine| transformer corrugated tank machine| transformer corrugated tank machine| transformer corrugated tank machine|
Specifications:
|
Item
|
Data
|
|
Width of raw steel coil
|
300~1500mm
|
|
Thickness of steel
|
1~1.5mm
|
|
Height of fin
|
100~400mm
|
|
Pitch between fin
|
45~80mm
|
|
Space inside fin
|
4-6mm
|
|
Forming speed
|
3 fins per minute
|
|
Dimension
|
5500 x 1600 x 2200mm
|
|corrugated tank fin wall machine|corrugated tank fin wall machine| corrugated tank fin wall machine| corrugated tank fin wall machine| corrugated tank fin wall machine|
Photos of the trial sample:
 |
 |
