Continuous extruding machine

Principle:

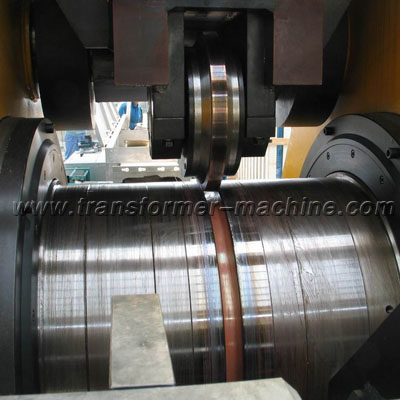

MFCCE series adopts advanced technology in the world, continuously feeding rod type blank material into a revolving squeezing wheel with groove. In the fixed groove, a sufficient temperature is generated by enormous force of friction and extrusion which make the material re-crystallized. And then material will be extruded and formed out of special dies. Thus various aluminum/copper profiles will be produced continuously.

Usage:
For producing various copper flat wire, copper bar, copper busbar, copper rod; aluminum flat wire, aluminum round pipe, aluminum flat pipe with holes, etc.

Advantages:
- Smooth and bright surface without burr, precious physical dimension
- Fine tissue, refined grain crystal, good performance evenness
- Perfect electric conductivity
- Can reach perfect soft and semi-hard, in any length
- Compact area occupation, low energy consumption, no material waste

◆MFCC300: for copper flat wire, aluminum flat wire, aluminum round pipe, aluminum flat pipe with holes

Item	MFCC300
Item	Copper	Aluminum
Dia. of squeezing wheel (mm)	300
Material	Copper/copper alloy	Aluminum/LD31,Lf21 alloy
Dia. of blank material (mm)	Φ8-12.5	Φ9.5-12
Max. product width (mm)	40
Product section area (mm²)	5-150	6-30(round); ≤50 (flat)
Average productivity (kg/h)	400	180

|copper busbar continuous extruding machine|copper busbar continuous extruding machine|copper busbar continuous extruding machine|
◆MFCCE350: mainly for copper magnetic wire, special profile and busbar, etc. Can be equipped with one die for two wires.

Item	MFCCE350
Diameter of squeezing wheel (mm)	350
Material	Copper or copper alloy
Diameter of blank material (mm)	Φ12.5-Φ16
Max. width of finished product (mm)	Copper bar 80; copper rod Φ 40
Section area of finished product (mm²)	10-800
Average productivity (kg/h)	780

|copper wire continous extrusion line|copper wire continous extrusion line|copper wire continous extrusion line|copper wire continous extrusion line|
◆MFCCE400: special for copper bar, copper busbar, copper rod. Equipped with changeable stopper, production cost decreases too much.

Item	MFCCE400
Diameter of squeezing wheel (mm)	400
Material	Copper or copper alloy
Diameter of blank material (mm)	Φ20
Max. width of finished product (mm)	Copper bar 170; copper rod Φ 80
Section area of finished product (mm²)	100-2400
Average productivity (kg/h)	1200

|copper strip continuous extrusion line|copper strip continuous extrusion line|copper strip continuous extrusion line|copper strip continuous extrusion line|
◆MFCCE550: suitable for big size copper busbar, oxygen-free copper blank strips and other copper alloy.

|copper continuous extrusion machine| copper continuous extrusion machine|copper continuous extrusion machine| copper continuous extrusion machine|

Item	MFCCE550
Diameter of squeezing wheel (mm)	550
Material	Copper or copper alloy
Diameter of blank material (mm)	Φ30
Max. width of finished product (mm)	Copper bar 260; copper rod Φ 90
Section area of finished product (mm²)	300-5000
Average productivity (kg/h)	2000

◆MFCCE630: special for big size copper busbar, oxygen-free copper blank strips

Item	MFCCE630
Diameter of squeezing wheel (mm)	630
Material	Copper or copper alloy
Diameter of blank material (mm)	Φ30
Max. width of finished product (mm)	Copper bar 320; copper rod Φ 100
Section area of finished product (mm²)	400-7000
Average productivity (kg/h)	2500
